I-TYPE Horizontal Digital Flow Wrapper
Overview
HP-450I / HP-600I
The digital horizontal packaging machine features a 5.7-inch microcomputer HMI touchscreen, allowing easy control and operation. It can store packaging parameters such as temperature, bag length, and packaging speed, with memory capacity for 50 or 100 sets of settings. The machine is designed for easy maintenance and can be integrated with basic automation systems to enhance performance.
Features
- User-friendly human / machine interface control with 5.7inch touch screen for convenient operations.
- Dialogue type screen provides maximum operation convenience and is easy to learn.
- Memory function makes the machine ideal for flexible packing operations.
- Self-diagnostic function permits convenient troubleshooting.
- Specially designed feeding system is available for packaging soft and sticky products.
- 50 sets of the recipe for easy production changeover.
Optional Accessories
- Date coder.
- Stainless steel machine frame.
- Gusset device.
- Labeler.
- CE or UL standards.
Specification
| MODEL |
HP-450I |
HP-600I |
| Operating Speed |
20 - 150 pack/min |
20-60 pack/min |
| Bag Length |
80 - 320 mm |
100 - 400 mm |
Max. Film Width
(max. roll dia.) |
430 mm (300 mm) |
580 mm (300 mm) |
| Product Width (max.) |
20 - 120 mm (50 - 150 mm) |
80 - 230 mm (110 - 270 mm) |
| Product Height |
Max. 60 mm(90mm) |
Max. 60 mm(90mm) |
Machine Dimensions
(L*W*Hmm) |
L3850*W950*H1560 |
L4000*W1080*H1560 |

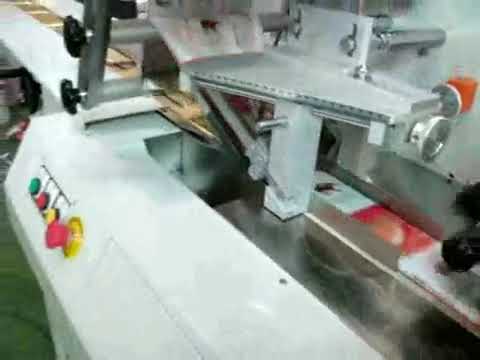

Video
-
