LW-161606 Automatic Rotary Rinsing Filling Capping Machine
Overview
Lung Wei Packing Co., Ltd. has high quality of Filling Machine, Capping Machine, Liquid Filling Equipment and Automatic Rotary Rinsing Filling Capping Machine.
Application
- Suitable for bottle: Glass or plastic bottle. (Can’t be shared)
- Suitable for cap: Aluminum or plastic cap. (Can’t be shared)
- Suitable for product: Water, wine and other good flow properties and particle-free products.
Features
- The machine employs rotary of rinsing、filling and capping.
- Equipped with PLC control combined with touch-sensing screen for maximum operation convenience.
- Equipped with a three-color warning light. It gives a clear warning in case of malfunction on electric control or pneumatic system.
- The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
- In case of no caps or lack of bottle or bottle stuck, the machine stops automatically.
- Control power use low voltage DC24V, reduce the risk of leakage.
Specification
| Machanical Specifications |
| Capacity |
70-90 BPM |
| Power Source |
3PH 220V/ 60HZ (According to customer demand for change). |
| Consumed Power |
5 KW |
| Machine Dimensions |
L2900 x W2200 x H2200 mm |
| Control System |
| HMI |
WEINTEK |
| PLC |
MITSUBISHI |
| Inverter |
DELTA |

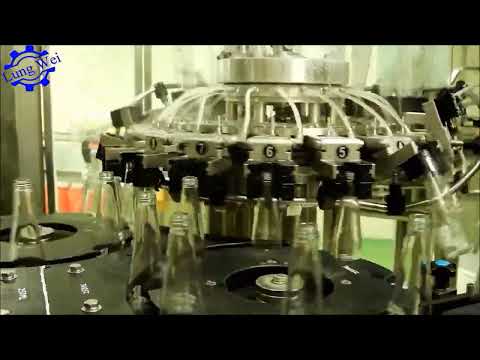

Video
-
