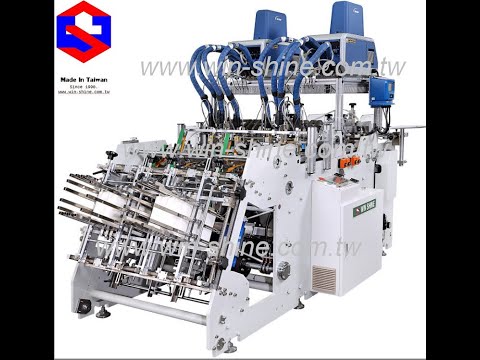

WS-9905D Paper French Fries Box Erecting Machine
Overview
Win Shine Machinery Co., Ltd. is specialized in Forming Machine, Box Making Machine, Erecting Machine, Carton Erecting Machine, Paper Hamburger Box Making Machine and Paper French Fries Box Erecting Machine.
Features
- Carton Erecting Machine is a special forming machine to produce burger box, one block box, food pail box(togo box),French Fires box and so on containers made by cardboard paper and corrugated paper.
- Cardboard paper one side PE coated paper (200~600GSM),or corrugated paper with maximum thickness 1.5MM.
- Also can produce containers made by aluminum foiled paper,2PE or 1PE coated paper with hot gluing system.
- Advantages:
1.Ability of producing different products by the same machine. Shortage changing mold’s time. Easy changing mold.
2.Controlled by PLC , HMI.
3.Finished products are collected ,stacked , and counted automatically.
Advantage:
- Food pail forming machine
- Paper pail forming machine
- Food container forming machine
- Paper Pail
- Fold-Pak
- Takeout Box
- Takeout containers
- Disposable Paper Take Out Food Containers
4.Two molds could be different.
Specification
| Model |
Dimension |
| L |
W |
H |
A1 |
A2 |
| WS-9905D |
100~120 |
100~380 |
15~200 |
5~40 |
18~30 |
|---|
| No. |
WS-9905D |
| Description |
| Production Speed (pcs/min) |
Servo : 160~360 |
|---|
| Paper Material |
|
|---|
| Sealing Method |
Glue Sealing |
|---|
| Electrical Requirement |
Approx. 3-5 kw |
|---|
| Compressed Air |
Approx. 200 ℓ/min |
|---|
| Machine Dimension (LxWxH cm) |
370x160x150 |
|---|
| Machine Weight (NW kgs) |
2200 |
|---|
| Material |
200~600g/m2 cardboard
or corrugared board E/F/N flute |
|---|
| Paper Thickness |
0.36~1.5mm |
|---|
