SP-92 Stand-up Pouch Filling Sealing Machine
Overview
Stand-up pouch filling and sealing machine, suitable for pouch size between W100 ~ 220mm, H150 ~ 320mm, filling range can apply to 50 ~ 2,000ml, the capacity can reach to 1200 bags per hour.
The stand-up pouch filling and sealing machine is using a suction cup and a clamp to open the bag to fill the product, and 1st sealing will use heat-seal, 2nd sealing will be cold-seal to cool down quickly to achieve the flatness of the sealed pouch.
For Example: Detergent filling and sealing machine、 Oat granule filling and sealing machine、 Powder filling and sealing machine.
Application
- Liquid , Powder , Granule
Machine Specifications
- Operation Panel
- A-Type：Traditional Switches and Buttons for simple operation
- B-Type：HMI-Touch Screen (Proface)
- Common Part：
- Variable speed adjustment via speed controller arrange with inverter
- Additional emergency stop switch for safety protection
- Automatic Pouch Dropping System
- A Pouch Storage Device
- Automatic Feeding/Dispensing Pouch System (Manually replenish the pouches)
- Automatic Opening & Filling Pouch System (Option)
- No pouch no filling sensor installed before filling system
- Automatic Filling System
- Automatic Sealing System
- Type 1 : Hot Heating Mold
- Type 2 : Air Cooling Sealing System
- Automatic Out-Feeding System
- Conveyor
Parts Specifications
- Machine Frame & Sheet : Stainless Steel in accordance with sanitation standard
- Intelligent design in the case of no bag, the machine will stop fill and seal.
- Fully wired control cabinet complete with wire labels for easy troubleshooting
- Stainless Steel : Springs, Screws, Driving Gear, and Chain
- Pneumatics Parts Brand: FESTO
- PLC Brand: MITSUBISHI
Optional Equipments
- Dust Proof around whole machine is available
- Inkjet Printer
- Collection Board
Specification
| Type |
Sealing & Filling Machine |
| Packaging Type |
Stand Up Pouch |
| Power Supply |
Customize |
| Certification |
CE |

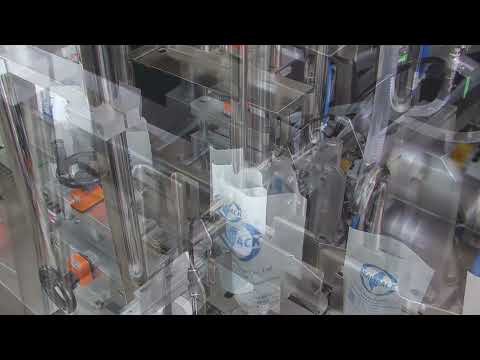

Video
-
