TOP-8-230 Automatic Pouch Filling-Sealing Machine
Application
- Mixture product: Prepared food, beef soup, tapioca ball, agar jelly, Konjac, coconut jelly, spaghetti sauce, side dish, etc.
- Liquid & paste product: Chicken essence, soup, sauce, juice, jam, health drink, etc.
- Solid product: Cookie, rice cracker, candy, snack, candied fruit, braised dishes, mini sausage, bean, coffee bean, pet food, etc.
- Frozen product: Chicken nuggets, dumpling, meat ball, fish ball, seafood, frozen soy beans, hot pot ingredients, frozen vegetables, etc.
- Powder product: Seasoning powder, food additives, etc.
.png)
Features
- Multifunction packing solution to integrate various weighing system, liquid filling pump, auger filler, etc.
- Flexible applications for solid, liquid, solid & liquid mixture, paste, frozen food, prepared food and powder product.
- Flexible applications for various pre-made bag as 4-side sealed pouch, standing pouch, tube pouch and zipper pouch.
- Fully water-proof for cleaning.
- Japan Omron PLC Control.
- Japan Omron HMI touch screen.
- Safety device distributed around the machine to ensure the safety.
- The width of all grippers width can be changed simultaneously by one switch, humanized design for saving of the manpower and time.
- Display of abnormal faults as seal wire broken, overload and insufficient air supply.
Package Style
Packing Type
Specification
| Model |
TOP-8-230 |
| Dimension |
(L) 2082 mm x (W) 1930 mm x (H) 1486 mm |
| Bag Size |
(W) 80-230 mm, (L) 100-350 mm |
| Bag Material |
Laminated Bag, Aluminum Foil Bag, PE Bag |
| Capacity |
10~45 bags/min (Depends on product property and package weight.) |
| Water Consumption |
Seal Cooling 2 L/min (Air Suction Device 7 L/min) |
| Air Consumption |
200 L/min |
| Power |
3Φ, 220V/380V, 50/60Hz, 3kW |

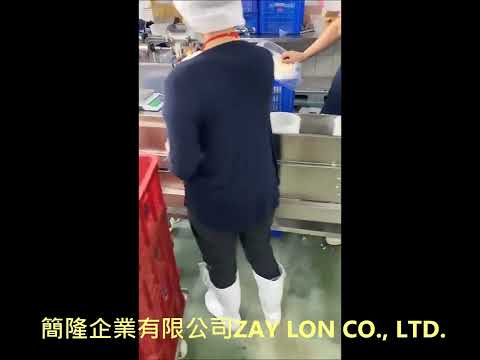

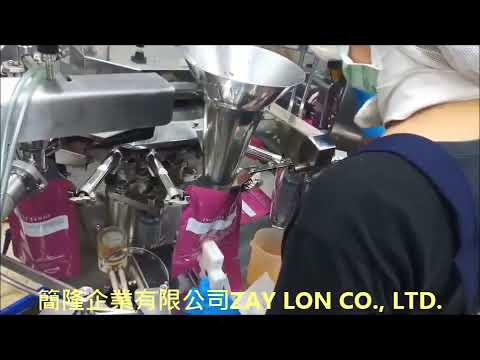

Video
-
