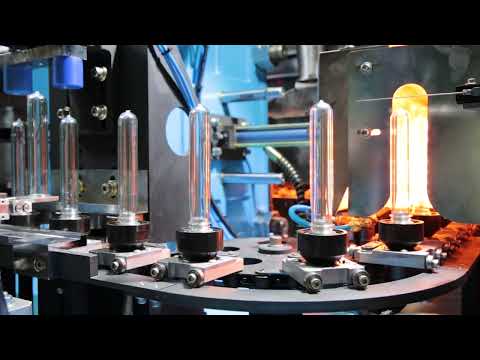

Chia Ming Machinery Co., LTD CHIA MING MACHINERY CO., LTD is the leading manufacturer of blow molding machinery in Taiwan. We are completely committed to producing the highest quality blow molding machinery and making sure our customers know that they come first. Research and development is constant at Chia Ming, improving existing blow molding machines, PET blow molding machines, PET stretch blow molding machines, extrusion blow molding machines and creating new products to meet markets demand. Strict quality controls are in place to ensure the highest quality throughout the manufacturing process, and fulfill customer expectations. We provide a complete package for after-sales services. Our extrusion blow molding machines and stretch blow molding machines have been enthusiastically received by American, African and Asian markets. All our products are ISO 9001:2000 and CE certified. Products All Category PET Blow Molding Machine Extrusion Blow Molding Machine About Us Inquiry Video CMA(S) Automatic PET Bottle Stretch Blow Molding Machine Ask Now OverviewCMA - 2000 S / 3000 S / 4000 S / 6000 S CMA(S) series PET bottle stretching machine is a new generation of fully automatic and versatile machines for mass production of PET bottles with volumes up to approximately 200 ~ 1500ml. The automatic bottle stretching machine is ideally suitable for large-scale factories and for applications where stringent quality requirements have to be met. Substantial reduction in operating costs is achieved by saving manpower. Application Water & Beverage Packaging Food Packaging Cleaning Supplies Cosmetic Medical Supplies other Features Preform In-feed and Unscrambler: Orientation and delivery of preforms are in an orderly fashion to the machine. Accurate position control of preform is achieved by a pneumatic system. Bottle Discharge System:Bi-axially oriented bottles from the moulds are picked up by robotic arms and placed in an upright position. The in-line conveyor or leaks testing system is optional. equipped. Preform Heating:Accurate temperature control of infrared heaters in various zones of the oven is achieved by electronic control. Rotating preform holding mandrels enables the circumference of preform at each zone to be evenly heated. Touch Screen Control System:Computer touch screen with the PLC system. All actions of the machine can be seen on the screen. The system is available for many sets of memories. The system diagnoses and displays the problems on the screen to make troubleshooting easier. Specification Model CMA-2000S CMA-3000S CMA-4000S CMA-6000S Container Max. neck diameter mm Ø25~Ø38 Max. production capacity pcs/hr 1440~2000 2160~3000 2880~4000 4320~6000 Max. body diameter mm 95 Max. container height mm 320 Max. bottle capacity ml 1500 No. of cavity no. 2 3 4 6 Mould Carry pitch mm 114.3 Mould center distance mm 114.3 No. of preform mandrels pcs 40 62 76 96 Heating oven No. of even no. 2 4 4 6 No. of infrared heaters in each oven no. 8 Heating load (max.) kw 25.6 52 52 76.8 Air pressure Low pressure kg/cm2 7 High pressure kg/cm2 35 Cooling water Cooling capacity kcal/h 14000 18000 24000 24000 Water consumption l/min 70 80 80 80 Water temperature °C 10~12 Pressure bar 5 Total consumption power kw 28 56 56 82 Machine dimension mm 2.45x1.7x2.2 3.75x1.85x2.2 4.3x2.15x2.2 3.2x1.9x2.2 Machine weight ton 4.5 6.5 7 8 * All Specifications and designs are subject to change without notice. * The production capacity refers to 500ml water bottles. * CMA Series model can be upgraded to fully electricity type by servo motor control. Video Related CMA (D) PET Automatic Stretch Blow Molding Machine CMA(BS,BD) PET Automatic Stretch Blow Molding Machine CMA(CS,CD) PET Automatic Stretch Blow Molding Machine CMA(H) PET Automatic Stretch Blow Molding Machine CMS(D,M,BS,BD,W) PET Fully Electric Stretch Blow Molding Machine CMSQ(W) PET Fully Electric Stretch Blow Molding Machine HL PET Fully Electric Stretch Blow Molding Machine CMS-Q1 PET Fully Electric Stretch Blow Molding Machine CMS( L) PET Fully Electric Stretch Blow Molding Machine CMS(C) PET Fully Electric Stretch Blow Molding Machine CMH PET Semi-Auto Stretch Blow Molding Machine CMP PP Stretch Blow Molding Machine Tags #Automatic PET Bottle Stretch Blow Molding Machine #CMA - 2000 S / 3000 S / 4000 S / 6000 S Chia Ming Machinery Co., LTD CHIA MING MACHINERY CO., LTD is the leading manufacturer of blow molding machinery in Taiwan. We are completely committed to producing the highest quality blow molding machinery and making sure our customers know that they come first. Research and development is constant at Chia Ming, improving existing blow molding machines, PET blow molding machines, PET stretch blow molding machines, extrusion blow molding machines and creating new products to meet markets demand. Strict quality controls are in place to ensure the highest quality throughout the manufacturing process, and fulfill customer expectations. We provide a complete package for after-sales services. Our extrusion blow molding machines and stretch blow molding machines have been enthusiastically received by American, African and Asian markets. All our products are ISO 9001:2000 and CE certified.
