CMS( L) PET Fully Electric Stretch Blow Molding Machine
Overview

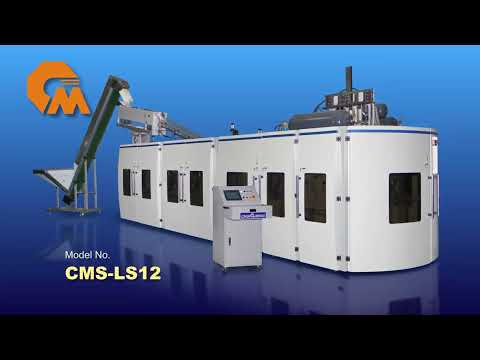

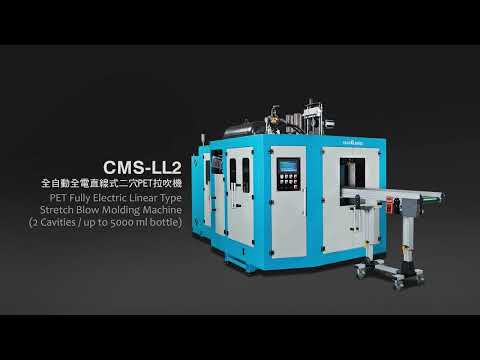

CMS - LM8 / CMS-LS12 / CMS-LL2
CMS(L) Series is 12 Cavities Fully automatic fully servo PET stretch blow molding machine. The features are mold clamping by servo motor, stretch system by servo motor, preform carriage by servo motor, pitch change by servo motor, and Heating Oven rotation by servo motor.
Application
- Water & Beverage Packaing
- Food Packaging
- Cleaning Supplies
- Cosmetic
Features
- Mold clamping by servo motor
- Stretch system by servo motor
- Preform carriage by servo motor
- Pitch change by servo motor
- Heating Oven rotation by servo motor
- PLC & HMI Control
- Standard Power regulator for control system
Specification
| Model |
CMS-LL2 |
CMS-LM8 |
CMS-LS12 |
| Container |
Production capacity |
pcs/hr |
5,000~7,200 |
7,000~9,600 |
9,000~12,000 |
| Max. neck diameter |
mm |
Ø38~45 |
Ø28~38 |
Ø28~30 |
| Max. container height |
mm |
350 |
320 |
250 |
| Max. body diameter |
mm |
Ø180 |
Ø100 |
Ø65 |
| Max. bottle capacity |
ml |
6000 |
1500 |
600 |
| No. of cavities (mould) |
no. |
2 |
8 |
12 |
| Heating oven |
No. of ovens |
sets |
4 |
4 |
8 |
| No. of infrared heaters in each oven |
pcs |
10 |
9 |
6 |
| Heating load (max.) |
kw |
< 72 |
< 96 |
< 96 |
| Air pressure |
Low pressure |
kg/cm2
m3/min |
7
1.0 |
7
1.0 |
7
1.0 |
| High pressure |
kg/cm2 |
up to 35 |
up to 35 |
up to 35 |
| Cooling water |
Cooling capacity |
kcal/h |
30000 |
30000 |
30000 |
| Water consumption |
l/min |
160 |
160 |
160 |
| Water temperature |
°C |
8~12 |
8~12 |
8~12 |
| Pressure |
bar |
4 |
4 |
4 |
| Total consumption power |
kw |
< 120 |
< 110 |
< 110 |
| Machine weight |
ton |
7.5 |
12 |
12 |
| * All Specifications and designs are subject to change without notice. |

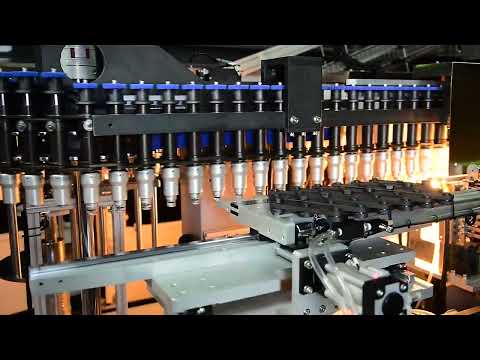

Video
-
