CJU-830 + CJ-500 Eye Drop Production Line

Overview
The liquid production processors design compliances with cGMP of the liquid product guideline. The processors are applicable for low viscosity and volume below 100ml.

To minimized pneumatic accessories operation to pollute the production environment, inner plug and outer cap placing procedures apply vacuum carrying and placing method rather than traditional pneumatic cylinder pressing.

To reduce electric maintenance time, the major parameter – Filling Volume adjustment applies mechanical adjustment to stabilize filling accuracy and machine operation.
Application
- Filling System:

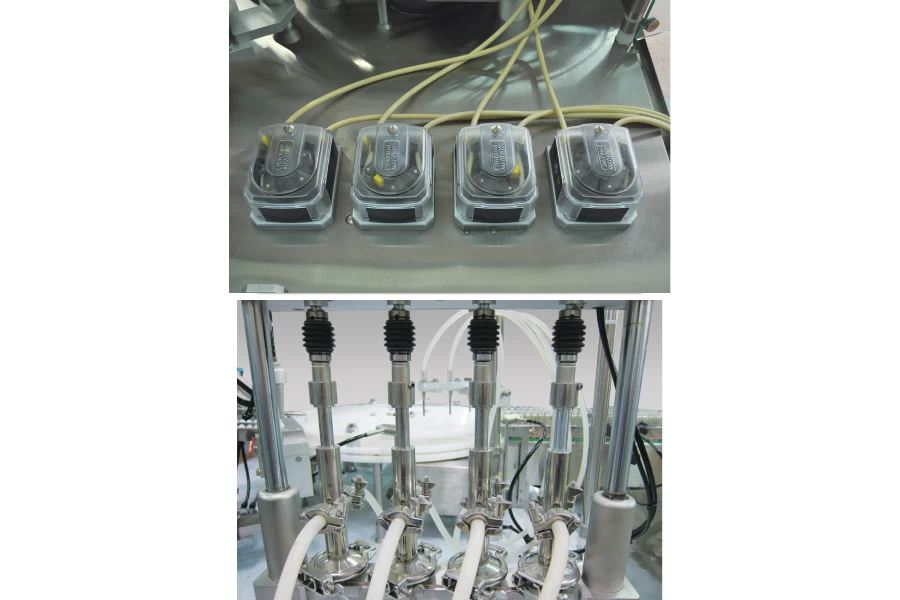

  - Filling Method: Stainless Steel Cylinder or Peristaltic pump.
  - Stainless steel filling cylinder contacts with liquid parts are coated with chrome to increase friction ability.
  - Piston Filling Cylinder benefits filling volume accuracy and special treatment will make longer life time than traditional design. Peristaltic pump filling method benefits filling volume a
  - All parts of filling system can be sterilized under 121℃ over 40 minutes (Autoclave sterilization)
- Filling Process
  - Two stage filling (half-half filling)
  - Option-Nitrogen Gas
- Plugging System：
  - Plug pick and place processes apply vacuum suction theory to meet pharmaceutical grade guideline.
  - Using plug detection device to prevent missing plug abnormal status.
  - Plug in-feed hopper is also available for various sizes of plugs as optional device.
  - All parts of plug system can be sterilized under 121℃ over 40 minutes ( Autoclave sterilization)
- Cap placing Device：
  - Cap pick and place processes apply vacuum suction theory to meet pharmaceutical grade guideline.
- Capping System：
  - Capping method is based on cap material and shape which is flexible.
  - Cap in-feed hopper is available for various sizes of caps as an optional device.
- other
  - Safety door material can be either Glasses or PC. Safety door can apply autoclave sterilization to meet safety and sanitary standard.
  - Laminar air flow system is available to meet customer requirement specification.
  - Adjustment handle design benefits machine tuning of different type products and reduce parts change over time.
  - Tool-less design benefits different products change over time, increase high efficient producing capacity.

Specification

Model	CJU-830 Automatic Bottle Unscrambler Machine	CJ-500 Automatic Filling/plugging/capping Machine
Product Range	Bottle Dimensions : 20-50 mm D x 20-70 mm H	Filling Volume : 2ml-20ml, 20ml-50ml, 50ml-100ml
Working Capacity	80-100 bottles/min	80-100 bottles/min
Power Consumption	220V Single Phase, 50/60HZ	220V Single Phase, 50/60HZ
Air Consumption	11.8 L/min @6 Bars	220 L/min @6 Bars
Machine Dimensions (LxWxH)	1420.2 x 750 x 1571.5 (mm)	2680.9x 1620 x 1738 (mm)
Machine Weight	230 KGS	1100 KGS

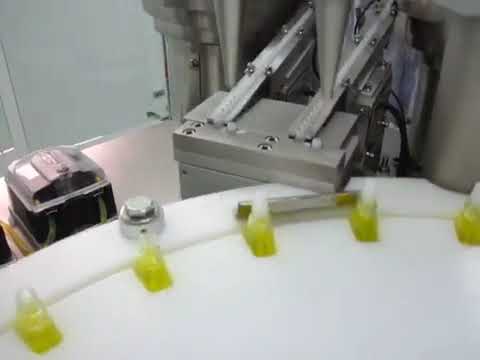

Video
