CJ-250 Automatic Filling and Capping Machine
Features
- The liquid packaging equipment compliances with cGMP liquid production guidelines and the common application is for above 60mL low viscosity products.
- The packaging equipment synchronizes filling and capping procedures to reduce occupied space of the clean room and possibly equip with plugging system to meet customer’s special requirement.
- Furthermore, the filling volume adjustment is computerized with servo motor controlled to increase operation convenience and reduce the adjustment time.
Details
- Filling System：
- Bottom filling system prevents foaming and spilling during high speed filling.
- Bottle block turning disc with counting function decreases the time of waiting for the next bottles coming in.
- Filling piston device：
- Stainless steel is polished and hard chrome plating for strengthening abrasion hardness which prevents contamination.
- The filling piston is controlled by PLC and servo motor. The different filling volumes and filling speed can be adjusted easily from the HMI touch screens.

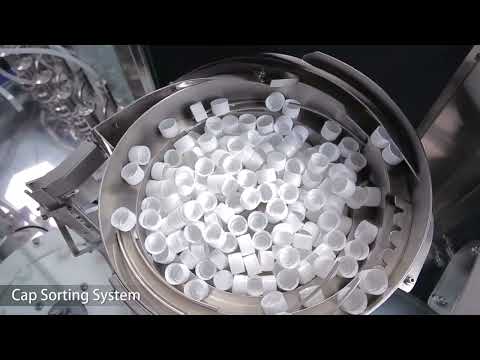

- Capping device：
- Offers low-particulate capping suitable for closing general glass bottle with AL ROPP cap. It is also suitable for screw or snap-on caps by changing the capping head.
- The machine is equipped with safety system - the machine will stop automatically in case of any bottle jams or in improper positions.
Specification
| Models |
CJ-250 Automatic Filling and Capping machine |
| Filling Volume |
5ml-60ml, 30ml-150ml, 100ml-500ml |
| Working Capacity |
30-60 bottles/min (Based on filling volume and liquid characteristic) |
| Power Consumption |
220V single phase, 50/60HZ, 2.03KW |
| Air Consumption |
0 L/min @ 6 Bars |
| Machine Dimensions (LxWxH) |
3048x1083x1738 (mm) |
| Machine Weight |
1100KGS |
