CSC-50 Semi-automatic Cartoning Machine (Vertical Type)
Overview
- The cartoning equipment applies the vertical semi-automatic production operation. The equipment is suitable for more types with medium capacity products.
- It is widely applied for every product with cartoning procedure.
- For those carton dimensions within machine applicable range, the correspondent mold and minor tuning is necessary for the different products.
Layout
Specification
| Model |
CSC-50 Semi-automatic Cartoning machine (Vertical Type ) |
| Working Capacity |
20-60 carton/min (Based on operator’s speed) |
| Carton size range (WxDxH) |
20-80 x 20-80 x 60-200 (mm) |
| Power Consumption |
220V single phase, 50/60HZ |
| Air Consumption |
90L/min @ 6 Bars |
| Machine Dimensions (LxWxH) |
1480x900x1295 (mm) |
| Machine Weight |
350KGS |

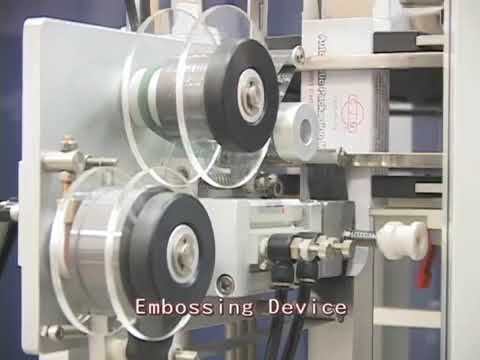

Video
-
