VV-T Series Nozzle Vacuum Sealer
Overview
Wu-Hsing Electronics is specialize in Sealer, Sealing Machine, Vacuum Sealer, Nozzle Vacuum Sealer and Nozzle type Vacuum Sealer.
Features
- WU-HSING’s Nozzle type Vacuum Sealer VV-305T/455T/605T is External Extraction model , is made in metal construction with electrostatic painting .
- An Oil-less vacuum Pump inside for dry and solid packing and a retractable Nozzle system made of stainless steel. Double-sides sealing 5mm is good at thicker bags and save sealing time. (10mm is available). Comes with a smart control panel: 10 programs. Can be equipped with a Gas Flushing system.
- This machine offers an easier packaging and greater sustained vacuum flow.
- Air control- Press the Foot Switch, Vacuum & sealing will be finished.
- Oil-less Pump: Made in Italy
- Operation requires an outside Air compressor. 6-7kg/cm².( Customer prepares)
- The gas flush/purge is an optional feature.
- Loading weight of Working Table: <5KGS
Specification
| Model |
VV-305T |
VV-3010 |
VV-3010T |
| Voltage |
AC 110V/220V/240V 1phase |
| Power(Watt.) |
Amp: 10A Watt.: 1300W |
Amp: 10A Watt.: 1300W |
Amp: 15A Watt.: 1900W |
| Pump Cap. |
180 Torr |
| Max, Sealing (L*W) |
5mm*310mm |
10mm*310mm |
10mm*310mm |
| Vacuum Time |
0-99 sec. |
| Sealing Time |
0-3.0 sec. |
| Cooling Time |
0-10 sec. |
| Dimensions |
445*670*320 |
| Working Table |
300mm*300mm |
| Weight |
39KG |
41KG |
43KG |
| Model |
VV-455T |
VV-605T |
VV-4510T |
VV-6010T |
| Voltage |
AC 110V/220V/240V 1phase |
AC 110V/220V 1phase |
AC 110V/220V/240V 1phase |
AC 110V/220V 1phase |
| Power (Watt.) |
Amp: 15AWatt.:2400W |
Amp: 15AWatt.:3000KW |
Amp:15AWatt.7KW |
Amp:15AWatt.:10KW |
| Pump Cap. |
180 Torr |
| Max. Sealing |
5mm*460mm |
5mm*610mm |
10*460mm |
10*610mm |
| Vacuum Time |
0-99 sec. |
| Sealing Time |
0-3.0 sec. |
| Cooling Time |
0-10 sec. |
| Vacuum Cap |
30 L/min |
| Dimension(mm) |
475*820*330 |
665*970*330 |
475*820*330 |
665*970*330 |
| Working Table |
450mm*450mm |
600mm*600mm |
450mm*450mm |
600mm*600mm |
| Weight |
39KG |
45KG |
42KG |
48KG |

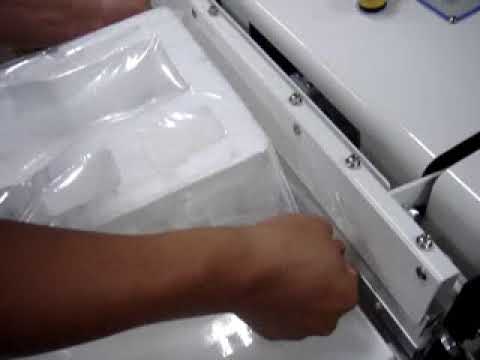

Video
-
