VVB-T Series Nozzle Vacuum Sealer
Overview
WU-HSING’s Nozzle type Vacuum Sealer comes standard with a vacuum pump inside and a retractable nozzle system made of stainless steel.
Features
- This machine offers an easier packaging and greater sustained vacuum flow.
- It is made by metal construction with electrostatic painted will offer a good service within many years.
- Pump is non-oil filling for dry packaging.
- Air control-press the foot switch, vacuum & sealing will be finished.
- Operation is so easy.
- Operation requires an outside compressor.
- Customer needs to prepare the air compressor 6-7kg/cm².
- The gas flush/purge is an optional feature.
- Loading weight of Working Table: <10KGS
Specification
| Model |
VVB-6010T |
VVB-8010T |
VVB-10010T |
VVB-20010T |
| Voltage |
AC 110V/220V/240V 1phase |
AC 110V/220V 1phase |
AC 110V/220V/240V 1phase |
AC 110V/220V 1phase |
| Power (Watt.) |
Amp: 15AWatt.:1300W |
Amp: 15AWatt.:1760W |
Amp: 15AWatt.:1300W |
Amp: 15AWatt.:1760W |
| Pump Cap |
180 Torr |
| Max. Sealing |
10mm*2*610mm |
10mm*2*810mm |
10mm*2*10010mm |
10mm*2*20010mm |
| Vacuum Time |
0-99 sec. |
| Sealing Time |
0-3.0 sec. |
| Cooling Time |
0-10 sec. |
| Vacuum Cap |
90 L/min |
120 L/min |
| Dimension |
665*820*800(mm) |
865*820*800(mm) |
1065*820*900(mm) |
2065*820*900(mm) |
| Weight |
80KG |
100KG |
200KG |
280KG |

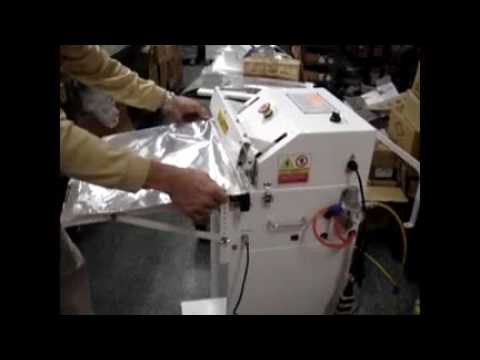

Video
-
