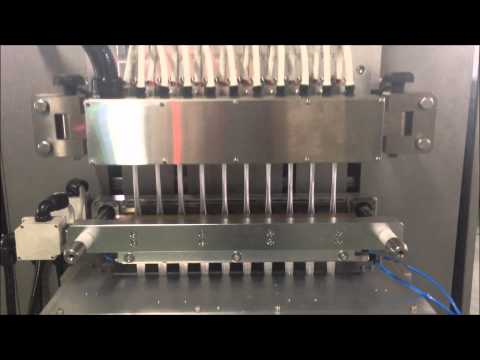

Multi-lane Vertical Form Fill Seal Machine CY-M10

Overview
Yueh Chyun Machinery Co.,LTD is specialized in Sealing Machine and Filling Machine .
Application
- The multi-lane auto filling sealing packing machine is up to 10 lanes of stick packages, it is widely used for sugar sticks, coffee creamer sticks or coffee powder sticks and so on.
Features
- Color touch screen - simple operating steps and user friendly.
- Operating language selections: English/Chinese.
- Servo motor system.
- PLC programmable logical control system - to allow intergration with additional facilities add-ons or other equipment.
- PID Temperature Control - accurate sealing temperature on each heating elements to ensure quality sealing.
- Self-diagnostic functions: error and malfunction displays.
- Auto correction photocell to provide accurate print registration to prevent defected packaging.
- Production records: batching setting, batching counting, total production counts.

Specification

MODEL	CY-M10
Sachet Style	Stick pack with lap seal or fin seal
Filling lane	4~10 lanes
Film width	Depending on the number of packaging lanes.
Sachet width	15~45mm
Sachet length	50~180mm
Capacity	15~35 cycles/min (subject to film quality, filling volume, and product conditions.)
Film	Laminating film
Filling system	Volumetric cup Auger filler Piston pumps
Machine dimensions	L1575mmW1470mmH2100mm
Machine weight	1200kg
Voltage	220V, 50/60 HZ
▲ Above specifications for standard machine only. ▲ Actual machine appearance may vary.
