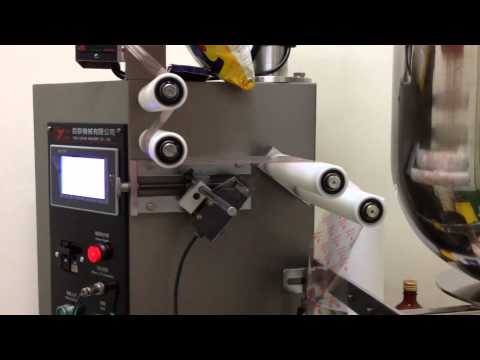

Vertical Form Fill Seal Liquid Packing Machine CY-I-II-III-R

Overview
Yueh Chyun Machinery Co.,LTD is specialized in Filling Machine, Sealing Machine and Liquid Filling Machine.
Application
- Liquid Packing Machine is automatically filling and sealing for packages of liquid products such as sauce, milk, oil, honey, ketchup, jelly, peanut butter, also the cosmetic products like shampoo, conditioner, lotion and hand cream etc. Operating with the rotary pump with servo motor dosing in high accuracy and high stability.
Features
- Color touch screen - simple operating steps and user friendly.
- SUS 316 Rotary Pump with servo motor dosing.
- Self-diagnostic functions: error and malfunction displays.
- Auto correction photocell to provide accurate print registration to prevent defected packaging.
- Micro computer temperature control to provide quality sealing.
- PLC programmable logical controller to allow additional facilities add-ons when needed.
- Production Records: batching setting, batching counting, total production counts.
- Multi Language Selections: English/Chinese.

Specification

MODEL	CY-I-R	CY-II-R	CY-III-R
Packing Style	Three Side Seal	Pillow Seal	Four Side Seal
Packing Size(mm)	W:25~90 x L:50~125	W:25~80 x L:50~125	W:25~90 x L:50~125
Film Width Range(mm)	50~180	50~180	50~180
Packing Speed	25~80 bags/min	25~80 bags/min	25~80 bags/min
Voltage	220V, 50/60Hz	220V, 50/60Hz	220V, 50/60Hz
Machine Weight	380KGS	380KGS	380KGS
Machine Size LxWxH(mm)	1070 X 700X 1750mm	1070 X 700X 1750mm	1070 X 700X 1750mm
▲ Packing speed is subject to film quality, filling volume and product conditions. ▲ Above specifications for standard machine only. ▲ Actual machine appearance may vary.
