CVC 432 Front And Back Labeler With Wrap Station
Overview
CVC Front and Back Labeler with Wrap Station CVC 432 is a dual-purpose machine designed to automatically apply pressure-sensitive labels onto the front and/or wrapping labels onto round containers. CVC 432 using the advanced system(Self Set), through this system users can effortlessly set up the diverse parameters like the speed of the motor, label length, labeling speed.
It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. Self Set inspecting all the parameters. Moreover, CVC 432 will record every data and able to output. CVC 432 can satisfy all your requirements. Multiple applications but 1 Machine!
Features
STANDARD FEATURES
- Self-Set Auto Adjusting Control System
- HMI touch screen
- Stainless Steel Frame on lockable casters
- Stainless Steel flatbed conveyor with table top chain
- Servo Motor control
- Label head with up to ±1mm accuracy
- Variable Speed Separator Wheel
- Type 304 stainless steel construction
- ISO 9001 : 2015 certified
AVAILABLE OPTIONS
- Hot Stamp (Lot/Date Coding)
- Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
- Adjustable Tilt for Tapered Bottles
- Bottle Rejection system ( air blow or cylinder)
- Clear Label Sensor
- Custom Wrap Belts and Feed Screw
- Infeed and Outfeed Conveyor Extensions
- Bar Code verification
- Low Label (Factory Installed Only)
- Missing Label Detection System (UV)
- Automatically generate the report on system
- Oufeed Turntable
- Missing Imprint Check system
- 21 CFR PART 11 compliance
- OPC UA for data collection
Specification
| Technical Specifications |
CVC 432 Technical Specifications |
| Applicable Bottle |
Diameter Ø1¼" to Ø4¼" (Ø30 mm - Ø110 mm)
Bottle with Cap Height 2" to 8¾" (50 mm - 220 mm)
dependent on conveyor width |
| Applicable Size |
Length Flat Bottle: 1¼" to 8" (30 mm - 200 mm)
Square Bottle: 1¼" to 4¼" (30 mm - 110 mm)
Width 1¼" to 4¼" (30 mm - 110 mm)
Height 2¾" to 12½" (75 mm - 320 mm) |
| Power |
220V, single phase, 950 VA (4.3 Amp) |
| Air Pressure |
6 bar (87 psi) (ISO 8573-1) |
| Air Consumption |
78.5 NLit/m (2.8cfm) (for optional reject and Lot/Date printer) |
| Consumption Machine Dimensions |
8'-7" x 4'-11" x 7'-5" (2,615 mm x 1,490 mm x 2,260 mm) (L x W x H) |
| Speed |
Rates in Excess of 260 Bottles Per Minute (Format Dependent) |
| Label Width / Height |
Configurable from ½" to 11½" (15mm - 265mm) dependent on label head type |
| Label Length |
½” to 10" (15mm - 250mm) |
| Label Roll |
Max 14" (356mm) outside diameter with 3" (76mm) core |
| Conveyor Width |
Configurable up to 4" (100mm) |
| Conveyor Length |
Standard 103" (2615mm) (Extendable) |
| Machine Weight |
400 kg (881 lbs) |
| Noise Level |
≦ 75 dB |

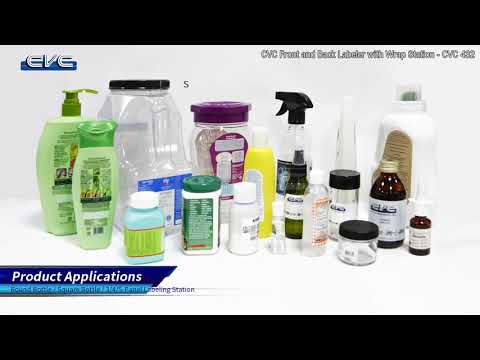

Video
-
