CVC 1205 Inline Capper With Hopper Elevator
Overview
The CVC 1205 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 140 bottles per minute. The CVC 1205 is Siemens PLC controlled. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
Features
STANDARD FEATURES
- PLC Controlled
- Memory capacity for 10 jobs
- Cap tightening station with 3 sets of spindles
- 9.1 cu ft. integrated cap hopper elevator
- ISO 9001:2015 certified
AVAILABLE OPTIONS
- Motorized sanitary conveyor (6" wide belt available)
- Tower lamp, hopper level control
- Cap inspection package (level cap, no cap, foil presence)
- Rejection system, reject confirmation
- Dual-belt gripping system
- 21 CFR Part 11 License
Specification
| Technical Specifications |
CVC 1205 Technical Specifications |
| Cap Height |
½” to ¾” (13mm - 19mm) |
| Cap Type |
Plastic screw and CRC |
| Cap Diameter |
1” to 4 ¼” (25mm - 108mm) |
| Power source |
220V, 50/60 Hz, Single Phase |
| Power Consumption |
7.5 Amp |
| Air Pressure |
Minimum 85 psi (ISO 8573-1) |
| Air Consumption |
15-20 cfm |
| Consumption Machine Dimensions |
5'-3" x 3'-8" x 7'-5" (1591mm x 1105mm x 2264mm) (L x W x H) |
| Speed |
Up to 140 Bottles per Minute(BPM) |
| Bottle Height |
2" to 8" (51mm to 203mm) |
| Bottle Body Height |
2" (51mm) below the shoulder |
| Bottle Diameter |
1-¼” to 4 ½" (32mm - 114 mm) (maximum 7½” bottle diameter on a 6" wide conveyor) |
| Hopper Weight |
397 lbs. (180kg) |
| Machine Weight |
926 lbs. (420kg) |
| Noise Level |
78 dB |

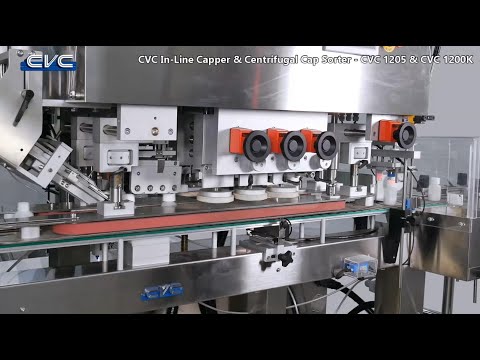

Video
-
