cvc 350 Horizontal Ampule Labeler / Vial Labeler

Overview
The CVC 350 Horizontal Ampule Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. The CVC 350 comes with a roller chain conveyor and can be purchased with an optional product loader. The CVC 350 is an ideal machine for contract packagers and manufacturers serving the biotech, nutraceutical, cosmetic, and personal care markets.
Features
STANDARD FEATURES
- Self-set auto adjusting control system
- Stainless steel frame on lockable casters
- Touchscreen HMI
- Label head with up to ± 1 mm accuracy (*bottles / containers dependent)
- Label sensor for paper or opaque labels

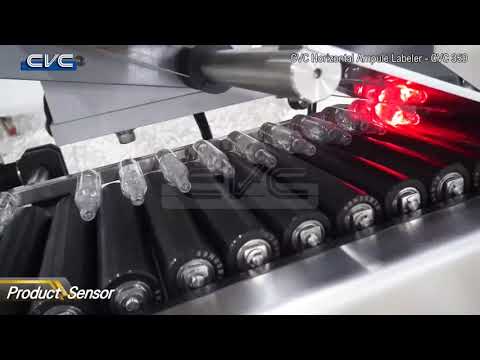

- Product sensor with opaque
- Compact design, available with both on-line and off-line operations.
- Type 304 stainless steel construction
- ISO 9001 : 2015 certified
AVAILABLE OPTIONS
- C60 Hot Stamp (Lot/Date Coding)
- Missing Hot Stamp Imprint Check
- Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
- Dataflex or Similar Lot/date Code Printer
- Clear , Metalic or Color Label Sensor
- Product Loader
- Adjustable Tilt for Tapered Bottles
- Custom made Wrap Station
- Automatic Vertical Stand-up Accumulation System

Specification

Technical Specifications	CVC 350 Technical specifications
Power source	110V/220V, Single Phase
Power Consumption	352 VA (3.2Amp/110V, 1.6Amp/220V)
Air Pressure	6 bar (87 psi) (ISO 8573-1)
Air Consumption	50 NLit/m (2cfm) (for optional Lot/Date printer)
Consumption Machine Dimensions	5'-8" x 2'-7" x 5'-1" (1,730 mm x 800 mm x 1,560 mm) (L x W x H)
Speed	Up to 250 Bottles per minute (BPM) (subject to our trial confirmation)
Label Width / Height	Configurable from ⅝" to 3 ¾" (15mm - 96mm) dependent on label head type
Label Length	⅝” to 3" (15mm - 75mm)
Label Roll	Max 14" (356mm) outside diameter with 3" (76mm) core
Bottle Height	Configurable from 1 ⅝" to 2 ¾" (40 mm - 70 mm)
Bottle Diameter	Configurable from ⅜" to 1" (10 mm - 24 mm) dependent on conveyor width
Conveyor Width	Configurable up to 5 ⅝" (144mm) / 7 ⅝" (194mm)
Conveyor Length	Standard 66 ⅞" (1700mm) (Extendable)
Machine Weight	230 kg (507 lbs)
Noise Level	70~75 dB
