JS-10A Automatic Quantitative Powder & Granule Filling & Packaging Machine (Mechanical Type+Vibration loading)
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Automatic Quantitative Powder & Granule Filling & Packaging Machine .
Application
- Applicable packing products : Various powder & granule, such as: sugar, salt, seasoning powder, milk powder, ground coffee, detergent powder, …etc.
- Applicable packing materials : Heat seal suitable filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- Mechanical type operation with 1/4 motor, reducer, chains, and gear.
- Vibration loading & agitator for low fluidness product to ensure smooth filling process.
- Volumetric Filling method with metering dish & cups.

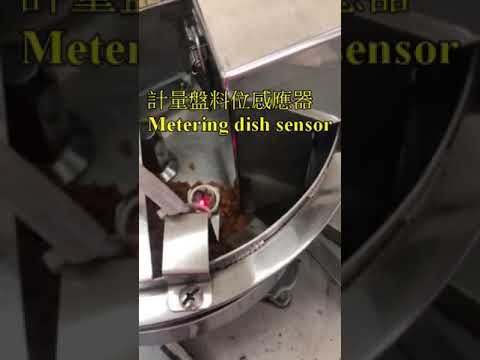

- Product level sensor on metering dish for auto refill from hopper ensure stable filling weight.
- Hopper quick dismantle without hand tool.
- Metering cups are easily to change within few minutes.
- Magnetic knocker support product filling completely.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- PLC controlled photocell device with auto track function.
- PID function Temp. controller for each sealing part with stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- Bag length is adjustable on the machine directly.
- Machine constructed by iron cast for long time operation stability & durability.
- Servo type construction available upon request.
Optional Device
- Date coder, Hopper level indicator, mixer device, output conveyor, nitrogen air connector, quantity warning, stainless steel frame, height adjustable dish and other required device upon request.
-
Sealing Type
![Packaging Machine,Powder Filling Machine,Granule Packaging Machine,Filling And Packaging Machine,Powder/Granule Packaging Machine,Automatic Quantitative Powder & Granule Filling & Packaging Machine Packaging Machine,Powder Filling Machine,Granule Packaging Machine,Filling And Packaging Machine,Powder/Granule Packaging Machine,Automatic Quantitative Powder & Granule Filling & Packaging Machine](../image/product/20210705-9df721ceed0bf0597053.webp)
Specification
JS-10A Mechanical Type + Vibration Loading |
Sealing Style |
3 sides, 4 side or pillow type packaging(one option) |
Motor |
1/4HP standard Motor x 1, Reducer x 1 |
Power |
220V, 50 or 60 Hz, single phase(upon request) |
Film Width |
60-160 or 80-220mm |
Bag Length |
50-110 or 70-160mm |
Filling Weight |
1-10g / 10-30g / 30-60g / 60-100g (varies with product density) |
Packaging Speed |
About 20-90 bags/min |
Machine Dimension |
125 x 103 x 200cm(L x W x H) |
NET Weight |
420kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film. |
