JS-28 Automatic Filling & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Automatic Filling & Packaging Machine.
Application
- Applicable packing products : Various granule, such as: capsule, tablet, candy, screw, round type, rectangle type or other shape in solid product.
- Applicable packing materials : Heat seal suitable cotton filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- Mechanical type operation with 1/4 motor, reducer, chains, and gear.
- Special design filling system for accurate and efficient packaging process.
- PLC controlled photocell device with auto track function.

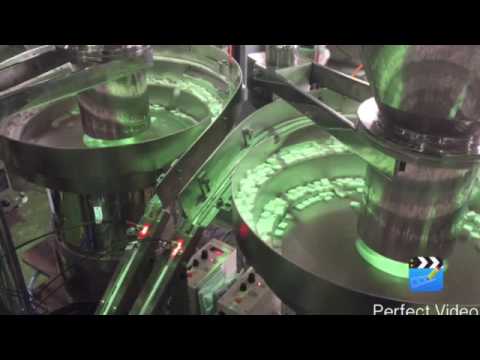

- Vibration tray loading with sensor control filling time.
- Automatic line up product into track for filling
- Filling track with auto refill function ensure good quantity.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- Individual Temp. Controller with PID function for stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- Packing speed and bag length are adjustable on the machine directly.
- Machine build with iron cast with painting frame. Stainless steel frame available upon request.
Optional Device
- Date coder, hopper level indicator, product output conveyor, nitrogen air connector, and other required device upon request.
Sealing Type
Specification
| JS-28 Servo Type |
| Sealing Style |
3 sides, 4 side or pillow type packaging(one option) |
| Motor |
Servo Motor controlled |
| Power |
220V, 50/60 Hz, single phase(upon request) |
| Film Width |
60-140 or 80-220mm |
| Bag Length |
50-200mm |
| Filling Weight |
By required number of products per bag. |
| Packaging Speed |
About 30-90 bags/min |
| Machine Dimension |
135 x 105 x 200cm(L x W x H) |
| NET Weight |
450kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |

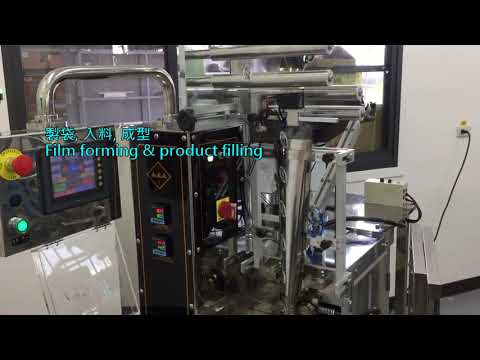

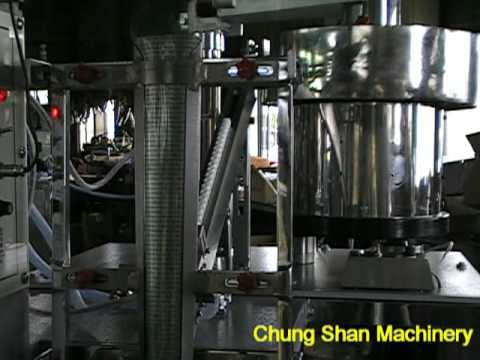

Video
-
