JS-34A Automatic Quantitative Powder & Granule Filling & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Packaging Machine, Powder Filling Machine, Granule Packaging Machine, Filling And Packaging Machine, Powder/Granule Packaging Machine and Automatic Quantitative Powder & Granule Filling & Packaging Machine.
Application
- Applicable packaging products : Various powder & granule, such as: chocolate ball, candy, tablet, beans, nuts, sugar, salt, coffee, tea, cashew nut, peanuts, cracker…etc., or other related product.
- Applicable packing materials : Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Features
- 2 sealing style in one machine, triangle & pillow type packaging.
- PLC Control with Touch Panel for ease operation.
- Touch Panel for easy usage to set up: cutting mode(eye mark or length cutting), bag length、speed、counter, QTY warning, sealing temp、sealing time、cutting time、memory record…etc.
- Pneumatic sealing enable to set up sealing & cutting time according request.
- Electronic parts are adopted Japan and German for high efficiency.
- Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
- Japanese SMC cylinder for stable sealing & cutting performance.
- Sealing style can be directly changed without hand tool.
- Auto eye mark tracing in a short time.
- Auto warning display for quick trouble shooting.
- Film tension control for stable film filling & pulling.
- Volumetric Filling method with metering dish & cups.
- Convenient auto quantity warning function for efficient package.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- PID function temp. controller for each sealing part with stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- 1M product output conveyor attached with machine.
- Machine build with iron cast with stainless steel frame.
Optional Device
- Date coder, hopper level indicator, product input conveyor, nitrogen air connector, and other required device upon request.
Sealing Type
Specification
| |
JS-34A Triangle Pack & Pillow Type |
JS-34P Pillow Type |
JS-34 Triangle Pack |
| Sealing Style |
Triangle and pillow type packaging(2 in one) |
Pillow type |
Triangle pack |
| Power |
220V, 50/60 Hz, single phase(upon request) |
| Control |
PLC Controlled + Touch Panel + Pneumatic Sealing |
| Film Width |
100-200mm |
100-300mm |
100-200mm |
| Bag Length |
50-160mm |
| Filling Weight |
1-10g / 10-30g / 30-50g bag |
| Packaging Speed |
About 20-50 bags / min |
| Machine Dimension |
150 x 110 x 205cm(L x W x H) |
| NET Weight |
480kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |

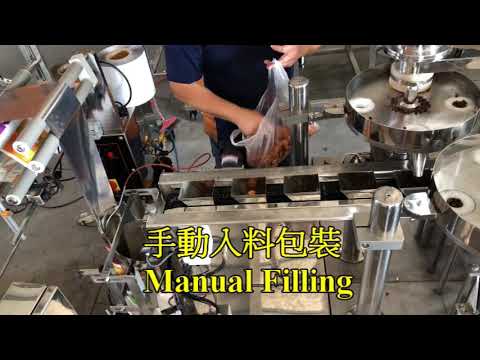

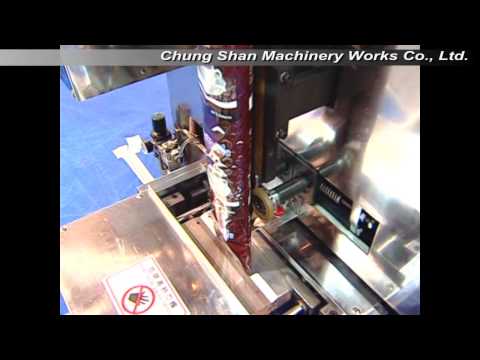

Video
-
