JS-32 Automatic Quantitative Double Wrapped Filling & Packaging Machine
Overview
Chung Shan Machinery Works Co., LTD. is a professional manufactures of Filling Machine, Packaging Machine, Tea Packaging Machine, Coffee Packaging Machine, Tea/Coffee Packaging Machine and Automatic Quantitative Double Wrapped Filling & Packaging Machine.
Application
- Applicable Packaging Products: Powder related products, such as: coffee powder, tea, herbs, ginseng …etc.
- Applicable Packaging Materials: Inner Bag Material: drip coffee filter paper or other filter paper.
Outer Bag: OPP + PE, Aluminium Foil +PE or other heat sealable laminated materials.
Features
- Fully automatic packaging process from inner to outer bag.
- Inner bag to outer bag with cylinder & sensor control to ensure completed packaging.
- Multiple sensors at packaging material for user friendly operation.

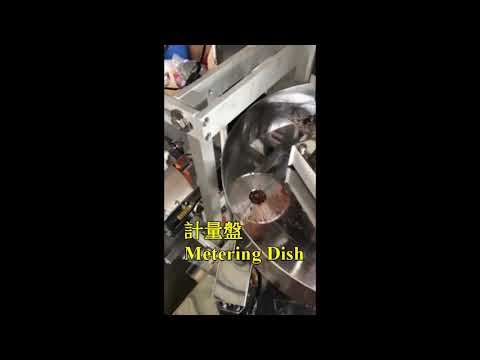

- Volumetric Filling method with metering dish & cups.
- Metering cups are easily to change within few minutes.
- Enable to equip vibration& agitator to enhance product filling fluidness according to request.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- Individual temperature controller with PID function for each sealing part.
- PLC control photocell device for outer bag, auto tracing eye mark in a short time.
- Machine build with iron cast with stainless steel frame.
- Pneumatic outer bag sealing available upon request.
- Vibration loading system upon request.
- Servo type with touch panel construction can be made according to request.
Optional Device
- Date coder,hopper level indicator, output conveyor, nitrogen air connector, height adjustable dish and other required device upon request.
-
Sealing Type
Specification
| JS-32 Double Wrapped Packaging |
| Sealing Style |
3 sides sealing |
| Power |
220V, 50 or 60 Hz, single phase(upon request) |
| Inner Bag Size |
(W)70 x (L)90mm |
| Outer Bag Size |
(W)100 x (L)120mm |
| Filling Weight |
1-5g / 5-10g / 10-20g / 20-30g (varies with product density) |
| Packaging Speed |
About 30-45 bags/min |
| Machine Dimension |
155 x 135 x 235cm(L x W x H) |
| NET Weight |
850kg |
Other packaging sizes available upon request.
Filling weight& Packaging speed will be differ from product density, weight & film.
6kg/cm2 compressed air with dry air filtering system self-prepared is required. |
