JS-30 Electronic Weighing & Filling Machine

Overview
Chung Shan Machinery is a professional manufacturer of Weighing Machine, Packaging Machine, Weighing Scale Packaging Machine and Electronic Weighing & Filling Machine.
Application
- Various powder & granule products, such as: sugar, salt, macaroni, chips, popcorn, cracker, candy, tea, beans, peanuts, pet food, screws, washer…etc., or other related products.
Features
- Ease operation with PLC control.
- Japanese weighing indicator with stable weighing & filling operation.
- 3 loading modes: auto, manually & pedal types.
- Up to 99 memory programs for setting multiple filling data.
- 2 stages vibration loading with large & micro-feeding for smooth & accurate filling.
- Digital filling value display, the filling weight can be simply adjusted.
- Filling chute size can be changed directly without hand tool.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- Machine can be made 1, 2 or 4 scales according to request.
- 95% of machine is made by SS304 meets sanitary standard.
Optional Device
- Product input conveyor, hopper level indicator, band sealer…etc., and other required device upon request.

Specification

JS-30 PLC Control+Weighing Scale
Power	220V, 50 or 60 Hz, Single phase(upon request)
Bag size	Pre-made bag
Filling Weight	50-5000g (varies with product density)
Machine Dimension	203 x 109 x 220cm(L x W x H)
NET Weight	220kg
Other packaging sizes available upon request. Filling weight& Packaging speed will be differ from product density, weight & film. 6kg/cm2 compressed air with dry air filtering system self-prepared is required.

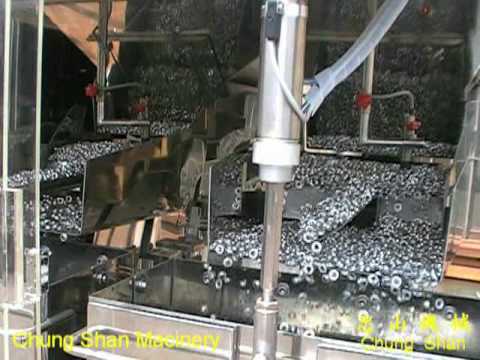

Video
