CHS-6602 Semi-auto Carton Sealer
Overview
This case sealer is a semi-automatic with a top and bottom driven model, manually adjusting carton sealer.
Features
- Top & bottom belt driven
- Adjusted manually for uniform or different size boxes by crank handle
- Especially suitable for tall / slim size boxes.
- High speed & durable tapping head
- Locking casters as standard accessory
- Dual telescoping mast with cushion
- Both side compression rollers
- Two side-guiding rails
- Stainless roller table
- Easy operation and easy maintenance.
- 100% Made in Taiwan Valued Quality
Specification
| Model |
CHS-6602 |
| Function |
Top & bottom belt driven |
| Power Supply |
1 phase,110V/ 220V/240V |
| Tape Width |
2" or 3" |
| 2” Tape Sealing size |
L150-∞mm, W180-500mm,H110-500mm |
| 3” Tape Sealing size |
L150-∞mm, W180-500mm,H110-500mm |
| Tape overlap |
L60±5 (mm) standard |
| Working table height |
570-770mm |
| Conveyor Speed |
20 M/min |
| Capacity |
30 cases/per min. depending on box size and operator efficiency. |
| Machine dimension |
L1105xW785xH1420mm |
※CHA Pack reserves the right to modify specification for quality development.
OPTIONS
Mechanical & Mechatronic aspect:
- ． Customized specifications
- ． Additional modifications such as flaps folding structure
- ． Tape overlap 70±5mm
- ． Extension roller table (infeed/exit) L500xW500mm
- ． Outside diameter of OPP tape 350mm
- ． CE Type
- ． Combine with strapping machine or case erector
- ． Additional pneumatic squeeze rollers-box width is fixed
- ． Detection for no tape and NG taping function
- ． Add emergency stop button or counter
- ． 60 sec. auto-stop
- ． PLC system
- ． Safety fences with shut-off device
Special needs:
- ． #304 Stainless steel machine construction
- ． Customized color

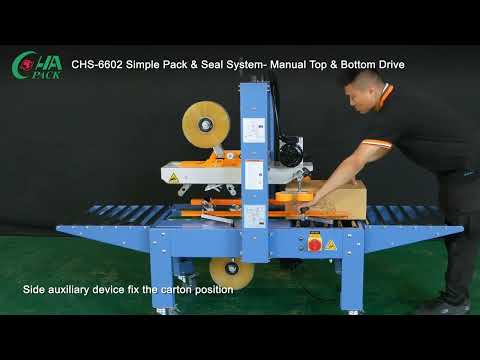

Video
-
