CHS-6702 Semi-auto Carton Edge Sealer
Overview
This H edge sealer is a top drive and bottom drive model. It can work with the random type case sealer or the uniform type case sealer.
The carton is sealed on the center line of the top and bottom of the carton,and then the carton will be pushed as 90 degrees into the edge sealer where it completes the "H" seal top and bottom.
Features
- Top and bottom belt driven
- Suitable for all general boxes. To seal the box’s top and bottom edges, four edges sealed continuously
- PLC controlled to alter the program easily.
- Suitable for food industry especially for damp-proof and vermin-proof.
- Adjusted manually for uniform or different box width sizes by crank handle
- Infeed push-carton conveyor
- Box height adjustment by motor-driven (move up/down)
- High speed & durable tapping head
- Locking casters as standard accessory
- Easy operation and easy maintenance
- 100% Made in Taiwan Valued Quality
Specification
Model |
CHS-6702 |
Function |
Top & Bottom belt driven |
Power Supply |
3 phase, 220V/380V/415V |
Tape Width |
3" |
Tape Sealing size |
L280-700mm, W250-600mm, H200-600mm |
Tape overlap |
L60±5 (mm) standard |
Working table height |
570-770mm |
Conveyor Speed |
20M/min |
Capacity |
10 cases/per min. depending on box size and operator efficiency. |
Machine dimension |
L2100xW1470xH1500mm |
Air compressor |
6kg/cm 2 |
※CHA Pack reserves the right to modify specification for quality development.
OPTIONS
Mechanical & Mechatronic aspect:
- .Customized specifications
- .Tape overlap 70±5mm
- .Outfeed power roller conveyor
- .Outside diameter of OPP tape 350mm
- .CE Type
- .Combine with case sealer or strapping machine or case erector
- .Detection for no tape and NG taping function
- .60 sec. auto-stop
- .Safety fences with shut-off device
Special needs:
- .#304 Stainless steel machine construction
- .Customized color

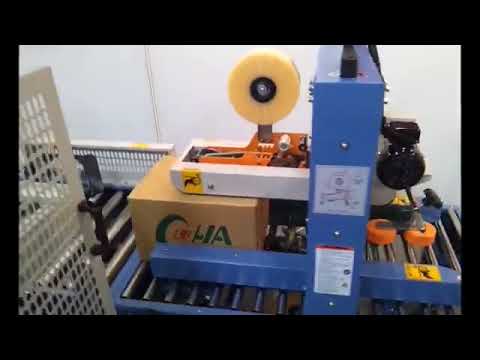

Video
-
