CHW-1800 Automatic Pallet Wrapping Machine

Overview
Chuen An Machinery Industrial Co., Ltd is specialized in Wrapper, Wrapping Machine, Stretch Wrapper, Automatic Pallet Wrapping Machine and Stretch Wrapping Machine.
Features
- PLC & traditional switch control
- Auto pneumatic clamping and cut-off system
- Auto film feeding, cutting and pressing, without needing the operator attach the film on the pallet and cut the film after wrapping finished
- Photo-eye pallet height sensor
- Separate top, bottom & up-down wrap count selector
- Film tension control adjustment on the control panel
- Remote control
- Separate start, reset and emergency stop buttons
- 5~15 RPM adjustment turntable speed & film carriage up/down adjustment speed by frequency inverter
- Soft Start / Stop and smooth wrapping prolongs machine’s lifespan
- Heavy duty chain drive film carriage and turntable, quiet and safe
- Adjustable film feeding speed by separate AC drive motor
- Soft Start / Stop and smooth wrapping prolongs machine’s lifespan
- Heavy duty chain drive film carriage and turntable, quiet and safe
- Adjustable film feeding speed by separate AC drive motor
- Hinged mast for easy handling
- Offers manual, automatic modes
- Easy operation control panel

Specification

※CHA Pack reserves the right to modify specification for quality development.

．Powered pre-stretch system up to 300% of the film length.
Pre-stretch ratio can be customized.
．Top pressurize mechanism
．Wrapping height 2700mm
．Turntable diameter: Ø1650mm, Ø2000mm

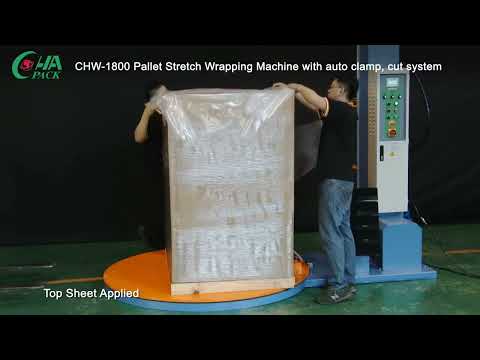

Video
