CHS-6605A Fully Auto Flap Folding Carton Sealer
Overview
This case sealer with automatic adjustment on height and width for various sizes of cartons. Automatic random flaps folding and seal top and bottom sides.
Featuring side and top drives, it can handle heavy products.
Features
- Top & side belt driven
- Pneumatic flap folding. To fold the box’s front, side and rear flap then proceed the taping
- Suitable for many different variety of general boxes.
- Adjusted automatically for many different box sizes
- High speed & durable tapping head
- Dual telescoping mast with cushion
- Stainless roller table
- Locking casters as standard accessory
- PLC control
- Easy operation and easy maintenance
- 100% Made in Taiwan Valued Quality
Specification
| Model |
CHS-6605A |
| Function |
Top & Side belt driven |
| Power Supply |
1 phase,110V/ 220V/240V |
| Tape Width |
2" or 3" |
| 2” Tape Sealing size |
L300-500mm, W150-500mm, W150-500mm |
| 3” Tape Sealing size |
L300-500mm, W150-500mm, W150-500mm |
| Tape overlap |
L60±5 (mm) standard |
| Working table height |
570-770mm |
| Conveyor Speed |
20M/min |
| Capacity |
10 cases/per min. depending on box size |
| Machine dimension |
L1985xW960xH1625mm |
| Air compressor |
6kg/cm² |
※CHA Pack reserves the right to modify specification for quality development.
OPTIONS
Mechanical & Mechatronic aspect:
- ．Customized specifications
- ．Tape overlap 70±5mm
- ．Extension roller table (infeed/exit) L500xW500mm
- ．Outside diameter of OPP tape 350mm
- ．CE Type
- ．Combine with strapping machine or case erector
- ．Add counter
- ．Detection for no tape and NG taping function
- ．60 sec. auto-stop
- ．Safety fences with shut-off device
- ．Roller table ( Over 40kgs.)
Special needs:
- ．#304 Stainless steel machine construction
- ．Customized color
Video

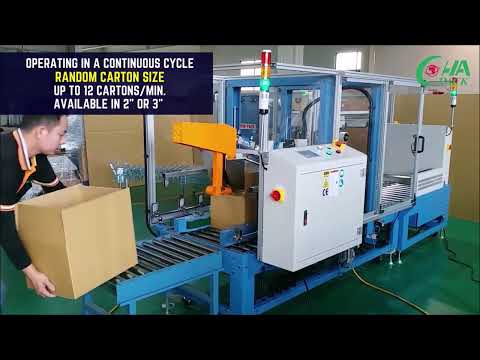

Fully Auto Flap Folding Carton Sealer
-
