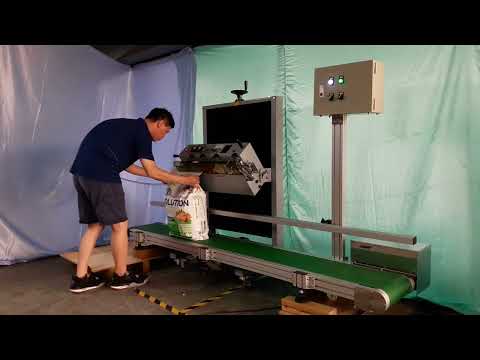

SY-M908D Heavy Vertical & Horizontal Sealing Machine

Overview
Showy Industrial CO., LTD is specialized in Heavy-Duty Band Sealer and Heavy Vertical & Horizontal Sealing Machine.
Application
- Applications: For any premade heat sealable pouch.
Features
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Conveyor length: 3m.
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)

Specification

Model	SY-M908D
Power	3230W
Packing speed	0~10 m/minute (adjustable)
Power supply	AC200V/220V/240V, single phase50/60HZ
Conveying direction	From left to right
Conveyor width	300mm
Bag size	Within 1000mm Long 500mm Wide
Temperature range	50℃~300℃
Heating power	600W×2pcs (250mm Long) 600W×2pcs (130mm Long)
Conveyor height adjustable range	500mm
Conveyor load weight	100 Kg
Sealing width	5mm (applicable to PE, PP) or 10mm , either one
Packing material thickness	0.06-0.5mm (double-layer thickness)
Packing function	Sealing
Remark	1. For the standard specifications described above, we reserve the right to change without prior notice. 2. Adjustable sealing angle 0°~90° degree.
