Vertical Band Sealer for Handle Bag
Overview
Showy Industrial CO., LTD is specialized in Special Model, Vertical Band Sealer for Handle Bag, Band Sealer and Sealing Machine.
Application
- Applications for food,chemicals and hardware parts.
- Packing materials: any heat sealable material.
- Suitable for product in large package or product that cannot be sealed by horizontal sealing machine.
Features
- The sealing length of the packaging bag can be customer needs.
- Built-in counting device.
- Built-in anomaly alarm device.
- Built-in speed display.
- Built-in 2 sets of temperature display, temperature control is more stable and accurate.
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Power |
780W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC100V/110V, AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor widtd |
200mm |
| Bag size |
Witdin 600mm Long 400mm Wide |
| Temperature range |
50℃~230℃ |
| Heating power |
350W×2pcs |
| Conveyor height adjustable range |
500mm |
| Conveyor load weight |
10 Kg |
| Sealing widtd |
5mm (applicable to PE, PP) or 10mm , eitder one |
| Packing material tdickness |
0.06-0.5mm (double-layer tdickness) |
| Machine size |
1620*640*1660 (mm) |
| Packing function |
Sealing |
| N.W、G.W |
140、210 (kg) |
| Remark |
For tde standard specifications described above, we reserve tde right to change witdout prior notice. |

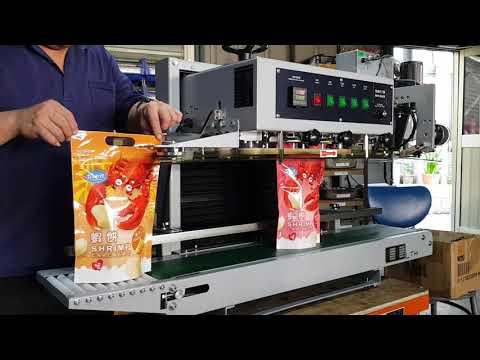

Video
Vertical Band Sealer for Handle Bag
-
