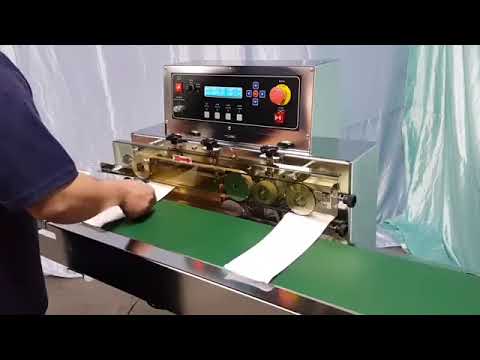

SY-M101 Medical Band Sealer

Overview
Showy Industrial CO., LTD is specialized in Medical Band Sealer, Band Sealer and Sealing Machine.
Application
- Applicable products: Medical
- Applicable packaging materials: medical bags, sterilization bags.
Features
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Built-in counting device.
- Sealing head can be tilted 0~15° degree forward.
- Built-in anomaly alarm device
- Built-in speed display
- Built-in 2 sets of temperature display, temperature control is more stable and accurate
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)

Specification

Model	SY-M101
Power	1300W
Packing speed	0~10 m/minute (adjustable)
Power supply	AC100V/110V, AC200V/220V/240V, single phase 50/60HZ
Conveying direction	From left to right
Conveyor width	200mm
Bag size	Within 300mm Long 300mm Wide
Temperature range	50℃~300℃
Heating power	600W×2pcs (2 sets of temperature display)
Conveyor height adjustable range	90mm
Conveyor load weight	5 Kg
Sealing width	10mm
Packing material thickness	0.06-0.5mm (double-layer thickness)
Machine size	13505501010 (mm)
Packing size	14306501130 (mm)
Packing function	Sealing
N.W、G.W	120、180 (kg)

Remark	For the standard specifications described above, we reserve the right to change without prior notice.
