SY-M903V Spout-mounting, Air-sucking and Sealing Machine
Overview
Showy Industrial CO., LTD is specialized in Horizontal Band Sealer, Spout-mounting, Air-sucking and Sealing Machine .
Application
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
Features
- Distance from content to be packed to the bag opening should be over 50mm at least.
- Sealing head can be tilted 0~15° degree forward.
- The bag is sealed with air extracted to reduce the volume of bag.
- Air extracting device: 380W
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Model |
SY-M903V |
| Power |
1800W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC100V/110V, AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
200mm |
| Bag size |
Within 300mm Long 300mm Wide |
| Temperature range |
50℃~300℃ |
| Heating power |
600W×2pcs |
| Conveyor height adjustable range |
90mm |
| Conveyor load weight |
5 Kg |
| Sealing width |
5mm (applicable to PE, PP) or10mm , either one |
| Packing material thickness |
0.06-0.5mm (double-layer thickness) |
| Machine size |
1650*720*1070 (mm) |
| Packing size |
1750*820*1180 (mm) |
| Packing function |
Sealing + air extracting |
| N.W、G.W |
165、265 (kg) |
| Remark |
For the standard specifications described above, we reserve the right to change without prior notice. |

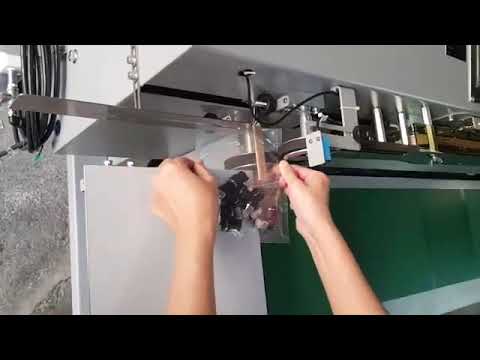

Video
SY-M903V Spout-mounting, Air-sucking and Sealing Machine
-
