SY-M800A Desktop Horizontal Air-suction Band Sealer
Overview
Showy Industrial CO., LTD is specialized in Desktop Band Sealer, Desktop Horizontal Air-suction Band Sealer, Band Sealer and Sealing Machine.
Application
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
Features
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Built-in counting device
- Built-in anomaly alarm device
- Built-in speed display
- Built-in 2 sets of temperature display, temperature control is more stable and accurate
- The bag is sealed and the air in the bag is taken out to make the bag smaller.
Optional devices
- Stainless steel (SUS#304)
- Hot Foil Coder (Mark the date batch number)
Specification
| Model |
SY-M800A |
| Power |
780W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC100V/110V, AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
150mm |
| Bag size |
Within 300mm Long 300mm Wide |
| Temperature range |
50℃~230℃ |
| Heating power |
350W×2pcs (2 sets of temperature display) |
| Conveyor height adjustable range |
Upward/downward 50mm forward/backward 40mm |
| Conveyor load weight |
1 Kg |
| Sealing width |
10mm |
| Packing material thickness |
0.26-0.5mm (double-layer thickness) |
| Machine size |
900*510*450 (mm) |
| Packing size |
950*590*550 (mm) |
| Packing function |
Sealing + Air-sucking |
| N.W、G.W |
30、55 (kg) |
| Remark |
For the standard specifications described above, we reserve the right to change without prior notice. |
Video

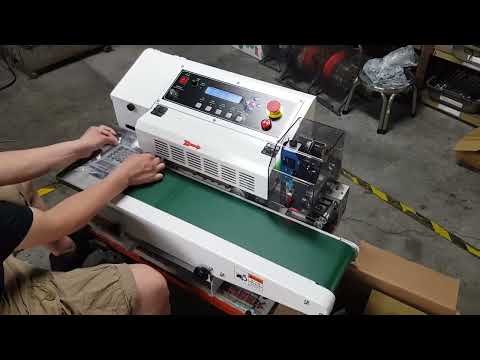

SY-M800A Desktop Horizontal Air-suction Band Sealer
-
