SY-M907T Vertical and Horizontal Sealing Machine
Features
MODEL: SY-M907T
- Applications for food,chemicals and hardware parts
- Packing materials: any heat sealable material.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Conveyor height is fixed (750mm).
- Built-in counting device.
- Built-in anomaly alarm device.
- Built-in speed display.
Optional devices
- Stainless steel (SUS#304)
- Coder (solid ink or hot foil)
Specification
| Power |
780W |
| Packing speed |
0~10 m/minute (adjustable) |
| Power supply |
AC200V/220V/240V, single phase 50/60HZ |
| Conveying direction |
From left to right |
| Conveyor width |
200mm |
| Bag size |
Within 600mm Long 400mm Wide |
| Temperature range |
50℃~230℃ |
| Heating power |
350W×2pcs |
| Conveyor height adjustable range |
500mm |
| Conveyor load weight |
10 Kg |
| Sealing width |
10mm |
| Packing material thickness |
0.06-0.5mm (double-layer thickness) |
| Machine size |
(L) 1620 × (W) 610 × (H) 1660 mm |
| Packing size |
(L) 1720 × (W) 740 × (H) 1760 mm |
| Packing function |
Sealing |
| N.W、G.W |
140、210 (kg) |
| Remark |
1. For the standard specifications described above, we reserve the right to change without prior notice.
2. Adjustable sealing angle 0°~90° degree. |
Video

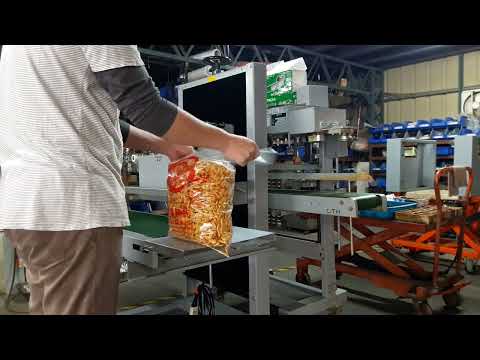

SY-M907T Vertical & Horizontal Sealing Machine
-
